Micronics Ultrasonic Flow Meter

Micronics Ultrasonic Flow Meter

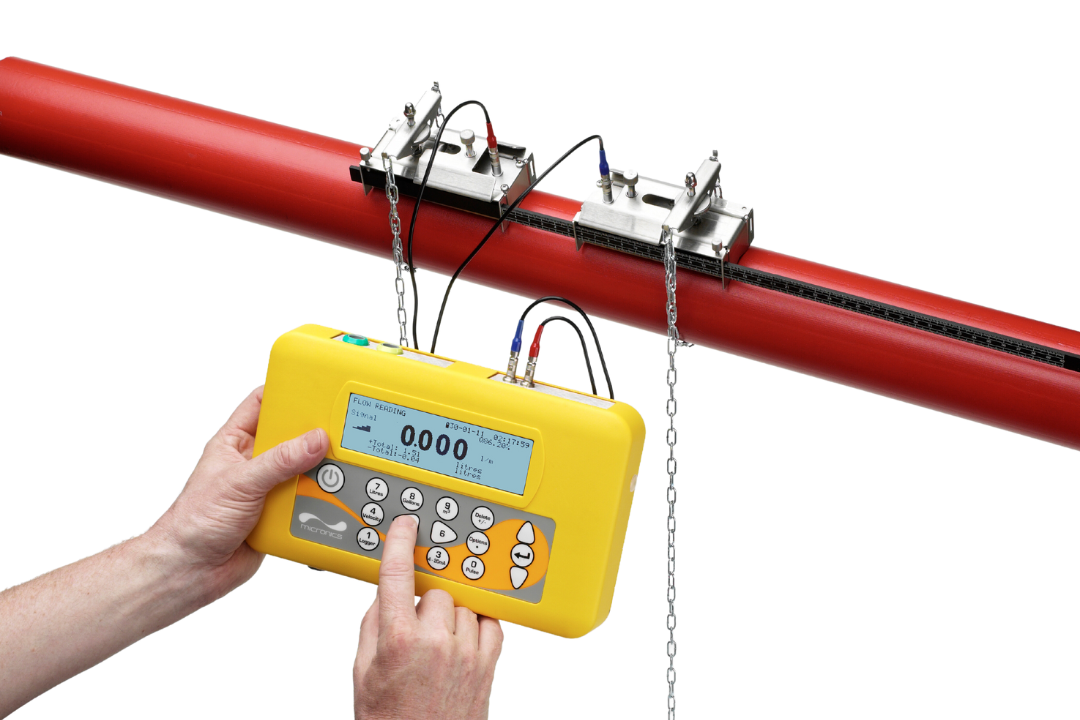

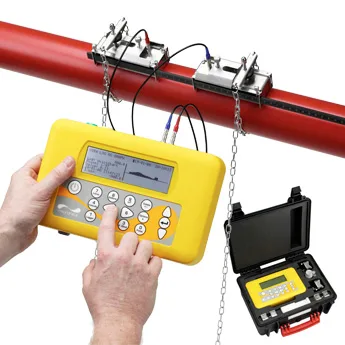

Portaflow PF333 Micronics Flow Meter (previously Portaflow PF330) is a non-instrusive clamp-on ultrasonic flow meter series. Engineered to surpass traditional standards, each device boasts advanced features meticulously designed to ensure high flow measurement accuracy and reliability. Whether for industrial, commercial, or environmental applications, Micronics Ultrasonic Flow Meters redefine the benchmark for excellence, providing users with unmatched performance and insights into their flow systems.

micronics ultrasonic flow meter

Advanced Functionality of Micronics Ultrasonic Flow Meter

Seamless Integration with External Systems

Equipped with 4-20 and pulse outputs, Micronics Ultrasonic Flow Meters seamlessly integrate with external devices such as building management and site monitoring systems. This ensures comprehensive data collection and analysis for enhanced operational insights.

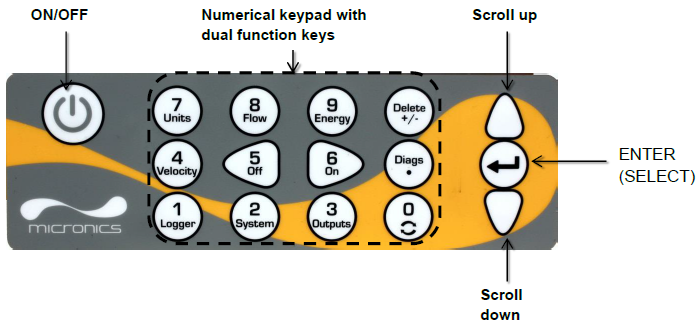

User-Friendly Keypad

Navigating through the Micronics Ultrasonic Flow Meter’s user-friendly keypad and intuitive interface is effortless. With a user-friendly design and interactive menu options, installation and setup are quick and hassle-free. Site configurations can be easily saved and recalled, streamlining workflow processes.

Micronics Ultrasonic Flow Meter

Technical Specifications:

  • New Ultrasonic, cross-correlation transit time method for flow measurement and PT100 Class B 4 wire for temperature measurement.
  • New Heat/Energy calculation is designed to comply with EN1434 section 6.
  • Flow Range – 0.1m/sec to 20m/sec bi-directional
  • Display – 64 x 240 pixels graphic display
  • Set-up via 16 key control panel
  • ‘A’ Transducers in mounting rail:– 13mm OD to 115mm OD pipes
  • ‘B’ Transducers in mounting rail:– 50mm OD to 2000mm OD pipes.
  • Battery or mains operation
  • Rechargeable NiMH battery
  • Battery Life – 14 hours (2.5 hours charge time), depending on load
  • Power – 110 – 240VAC +/-10% supply via PSU
  • 6 user selectable languages including English, German, French, Spanish, Portuguese and Russian
  • Accuracy Pipe ID > 75mm – ±0.5% to ±2% of flow reading for flow rate >0.2m/s
  • Accuracy Pipe ID 13-75mm – ±3% of flow reading for flow rate >0.2m/s
  • CE approved

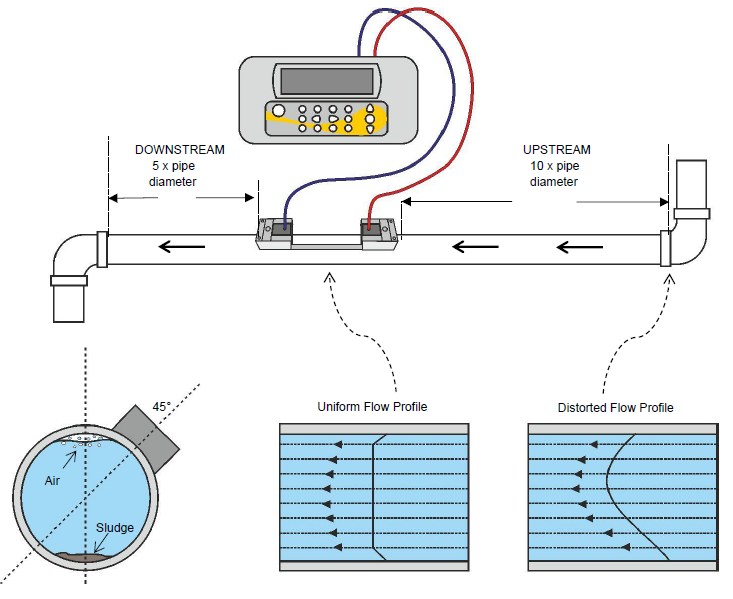

Non-Invasive Installation: Micronics Flow Meter

External Transducers for Non-Invasive Measurement

With transducers attached externally, Micronics Ultrasonic Flow Meters provide non-invasive flow measurement. This preserves process integrity and minimizes downtime, as installation can be done without disrupting ongoing operations.

Micronics Ultrasonic Flow Meter

Versatile Features of Micronics Ultrasonic Flow Meter

Precision Flow Measurement

Utilizing ultrasonic technology, Micronics Ultrasonic Flow Meters deliver precise flow measurements across a wide range of flow rates and pipe sizes. This ensures accurate data for informed decision-making and process optimization.

Optional Temperature Measurement and Heat/Energy Calculation

For enhanced functionality, Micronics Ultrasonic Flow Meters offer optional temperature measurement and heat/energy calculation capabilities. These features enable compliance with industry standards and provide valuable insights into energy usage and efficiency.

micronics ultrasonic flow meter

User-Friendly Interface for Enhanced Control

Intuitive Display and Control Panel

Featuring a user-friendly display and control panel, Micronics Ultrasonic Flow Meters simplify operation and configuration. Users can choose from multiple languages for added convenience, ensuring accessibility across diverse user groups.

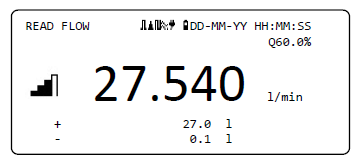

Portaflow PF333 MENU

Reliable Performance and Precision

Flexible Power Options

Whether powered by rechargeable battery or mains operation, Micronics Ultrasonic Flow Meters deliver reliable performance in any setting. With extended battery life and quick-charging capabilities, downtime is minimized, ensuring continuous operation.

Stringent Quality Standards

Engineered to meet stringent quality standards, Micronics Ultrasonic Flow Meters provide accurate and reliable flow measurement data. CE approval further attests to their quality and performance, instilling confidence in their reliability.

Unlocking Efficiency with Micronics Ultrasonic Flow Meter

Experience unparalleled efficiency and precision in flow measurement with the Micronics Ultrasonic Flow Meter series. Upgrade your flow monitoring capabilities today and unlock new possibilities for process optimization and cost savings.
